E4G A465A AMGO Wheel Alignment 4 Post Lift 6.5 Ton Capacity With 5500mm Platforms 1ph/3ph

Description

AMGO E4G A465A 6.5 Ton Wheel Alignment Lift, a versatile and robust solution for servicing cars, vans, and minibuses. With an impressive 6.5-ton lifting capacity, this lift features a 5500mm platform length and a total length of 6541mm, including the run-up ramps. Its design allows for installation both above ground and recessed into the floor, making it ideal for workshops with height restrictions.

The lift is equipped with an electric 24V and air control system, requiring an air supply for operation. It includes a mechanical self-lock and air-driven safety release, ensuring reliable and secure lifting. The foot protection feature adds an extra layer of safety by stopping the lift at 300mm during lowering; to continue, a further release is required, accompanied by an alarm sound for enhanced safety.

Please note that the jacking beam and turning plates are optional extras and are not included with the lift.

Product Features:

• Lifting Capacity: 6.5 tons, suitable for cars, vans, and minibuses.

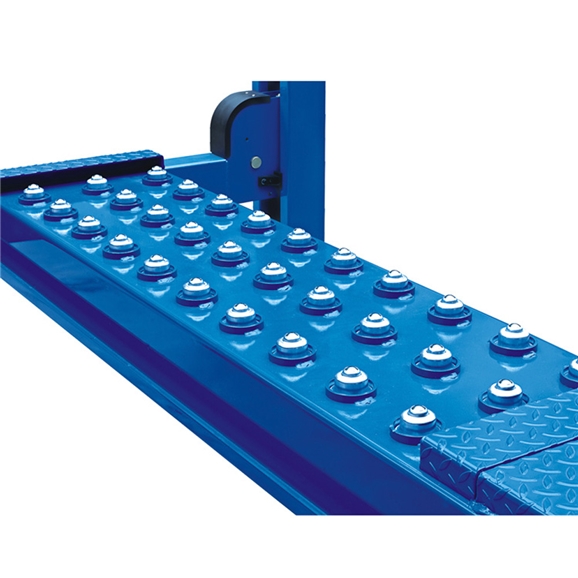

• Platform Length: 5500mm with rear slip plates and turning plate sections.
• Total Length: 6541mm including the run-up ramps.
• Installation Flexibility: Can be installed above ground or recessed into the floor.

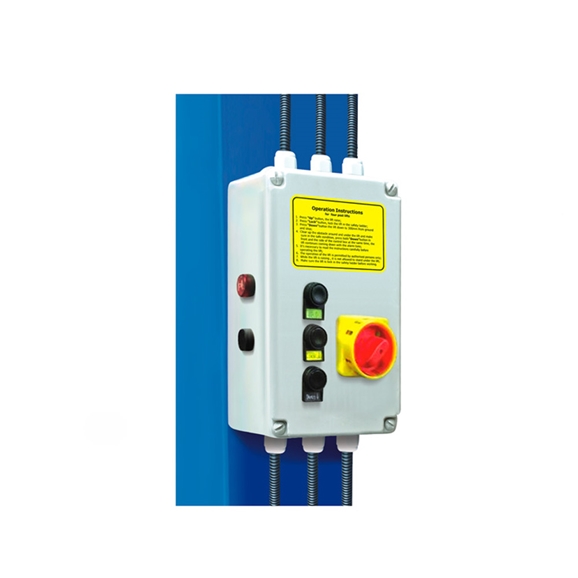

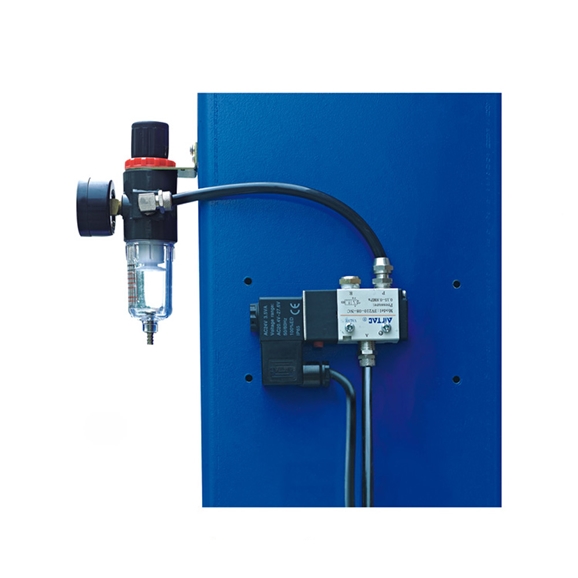

• Control System: Electric 24V and air control system (air supply needed).
• Safety Features: Mechanical self-lock and air-driven safety release, foot protection stopping at 300mm with alarm sound.
• CE Approved: Meets high safety and quality standards.

Note: This lift is not supplied with a jacking beam or turning plates; these are optional extras.
